Medium voltage cables, aluminum conductor steel reinforced, conductor screen, XLPE insulation – 12.7/22(24)KV-BP and 12.7/22(24)KV

Contact

Medium voltage cables, aluminum conductor steel reinforced, conductor screen, XLPE insulation – 12.7/22(24)KV-BP and 12.7/22(24)KV
Symbol:

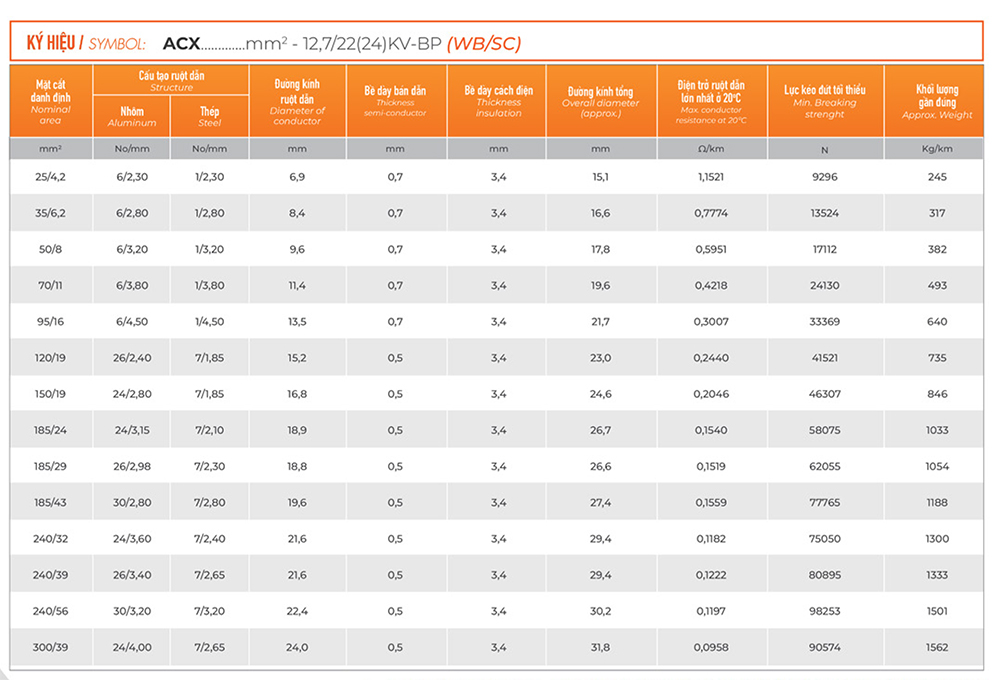

ACX…mm2 – 12.7/22(24)KV-BP (WB/SC)

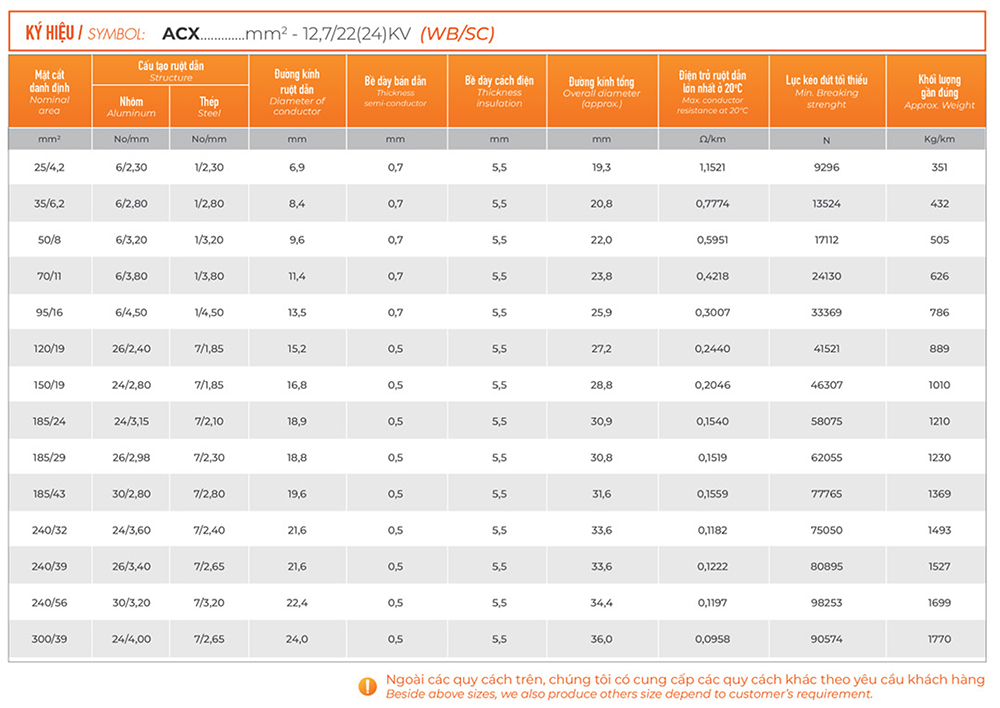

ACX…mm2 – 12.7/22(24)KV (WB/SC)

Category:
Hotline
0903.902.849
Quote
Download Catalogue

1General

  • Used in overhead medium voltage power distribution systems, rated voltage up to and including 12.7/22(24)KV.

2Applied standard

  • TCVN 5064 – 1994; TCVN 5935-2 / IEC 60502-2; TCVN 6612 / IEC 60228 or equivalent standard.

3Identification of cores

  • By color of insulation: black.
    Or by customer’s requirement.

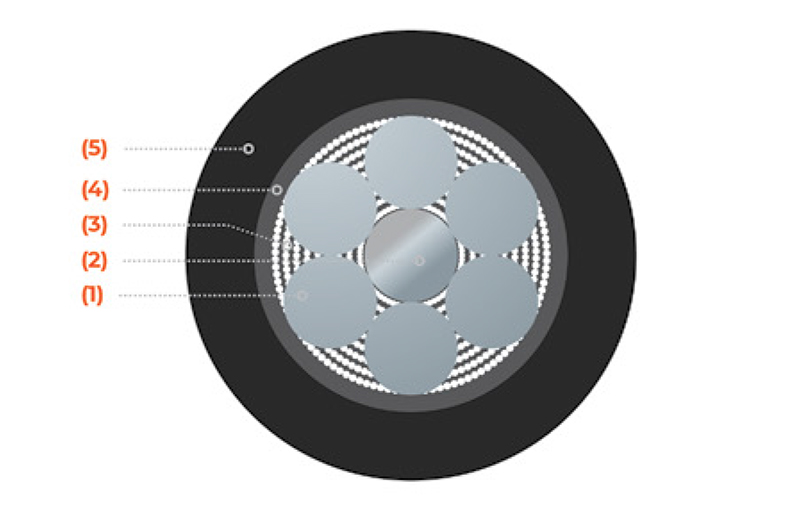

4Structure

  • (1) Aluminum wires.
    (2) Steel wires.
    (3) Water-blocking: water blocking compound.
    (4) Conductor screen: semi-conductor.
    (5) Insulation: XLPE.

5Technical characteristics

  • Rated voltage U0/U(Um): up to and including 12.7/22(24)
  • Maximum conductor temperature for normal operation is 90°C.
    Maximum conductor temperature for short-circuit (5s maximum duration) is 250°C.
