Spaced aerial cable, aluminum conductor, conductor screen, XLPE insulation, HDPE sheath – 25KV

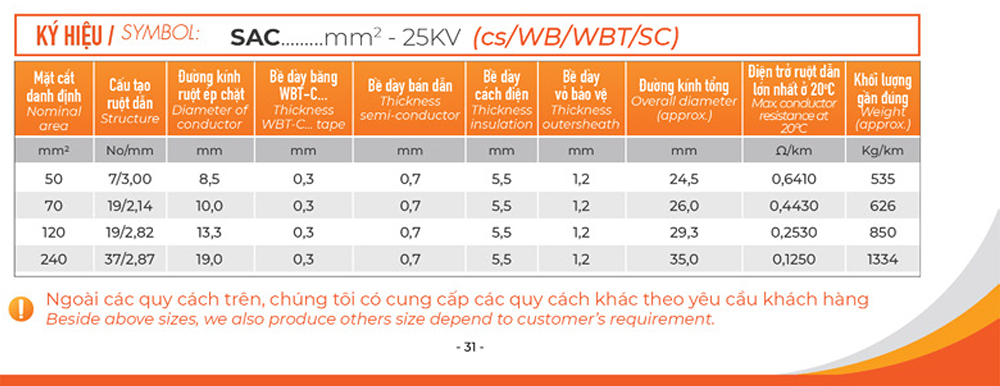

Symbol: SAC…mm2 – 25KV (cs/WB/WBT/SC)

1General

  • Used in overhead medium voltage power distribution systems, rated voltage 25KV.

2Applied standard

  • ICEA S-66-254, TIS 2341-2555; TCVN 5935-2 / IEC 60502-2; TCVN 6612 / IEC 60228 or equivalent standard.

3Identification of cores

  • By color of insulation: natural color of XLPE.
  • Outer sheath: Black
    Or by customer’s requirement.

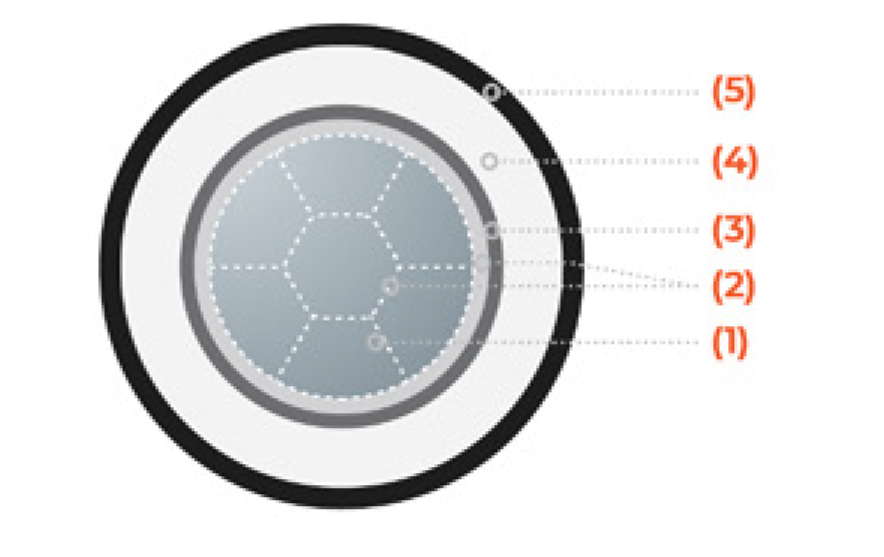

4Structure

  • (1) Conductor: By stranded compacted circular aluminum.
    (2) Water-blocking: water blocking compound and WBT-C… tape.
    (3) Conductor screen: semi-conductor.
    (4) Insulation: XLPE.
    (5) Outer sheath: HDPE.



5Technical characteristics

  • Rated voltage: 25
  • Maximum conductor temperature for normal operation is 90°C.
    Maximum conductor temperature for short-circuit (5s maximum duration) is 250°C.
