Power cables, aluminum conductor, XLPE insulation – 0.6/1KV

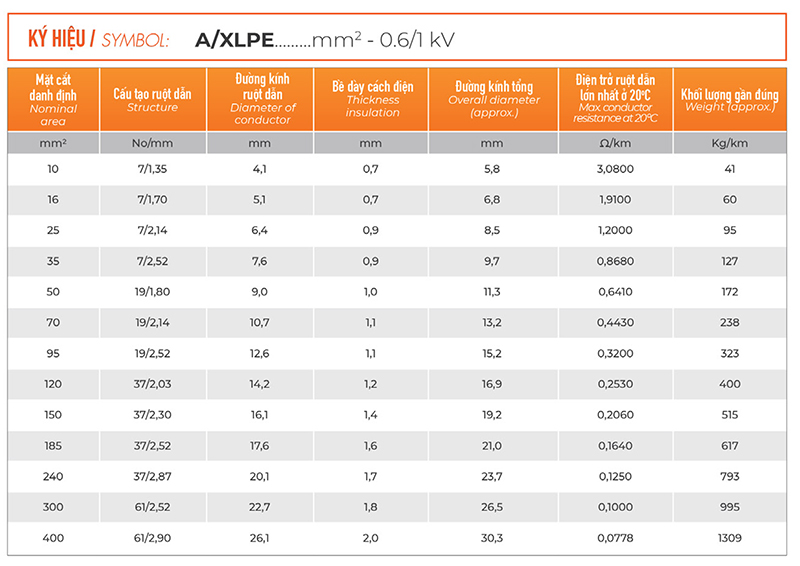

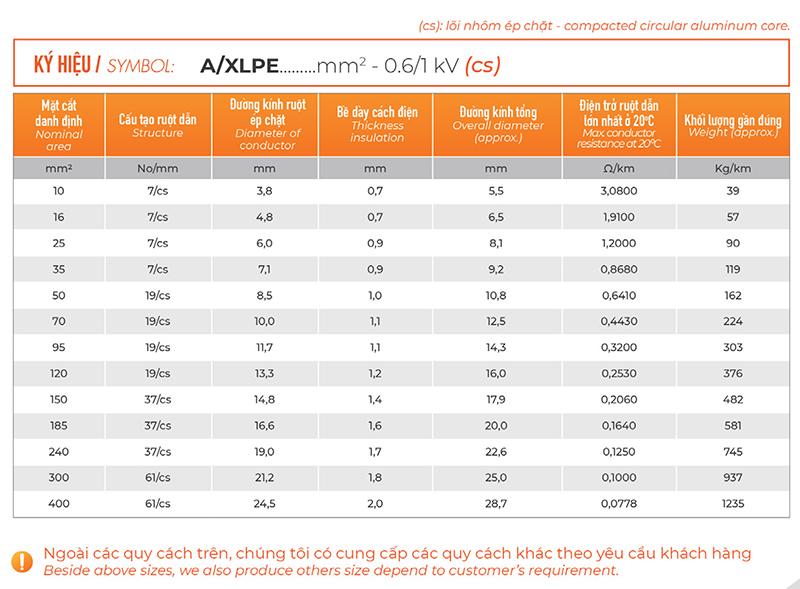

Symbol: A/XLPE…mm2 – 0,6/1KV, A/XLPE…mm2 – 0,6/1KV (cs)
Hotline
1General
- Used in power transmission and distribution systems, rated voltage 0.6/1KV, fixed wiring.
2Applied standard
- TCVN 5935-1 / IEC 60502-1; TCVN 6612 / IEC 60228 or equivalent standard.
3Identification of cores
- By color of insulation:
Or by customer’s requirement.

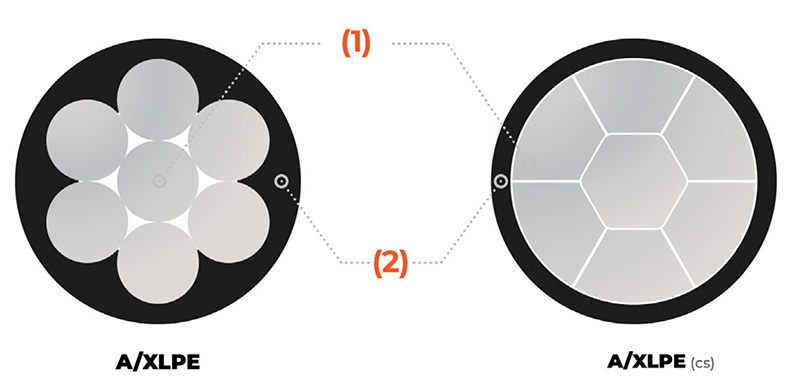

4Structure
- (1) Conductor: By aluminum wires, concentrically stranded or compacted circular.
(2) Insulation: XLPE.
5Technical characteristics
- Rated voltage U0/U: 0,6/1 kV.
- Test voltage: 3,5 kV (5 minutes).
- Maximum conductor temperature for normal operation is 90°C.
Maximum conductor temperature for short-circuit (5s maximum duration) is 250°C.
