Low voltage aerial bundled cables aluminum conductor, XLPE insulation – 0.6/1KV
- Low voltage aerial bundled cables aluminum conductor, XLPE insulation – 0.6/1KV
Symbol: ABC…mm2 – 0,6/1KV
Hotline
1General
- Used in power transmission and distribution systems, rated voltage 0.6/1KV, fixed wiring.
2Applied standard
- TCVN 6447:1998; TCVN 6612 / IEC 60228 or equivalent standard.
3Identification of cores
- By color stripe (or rip) on insulation: red stripes (1 rips), yellow stripes (2 rips), blue stripes (3 rips), non stripe (non rip).
Or by customer’s requirement.

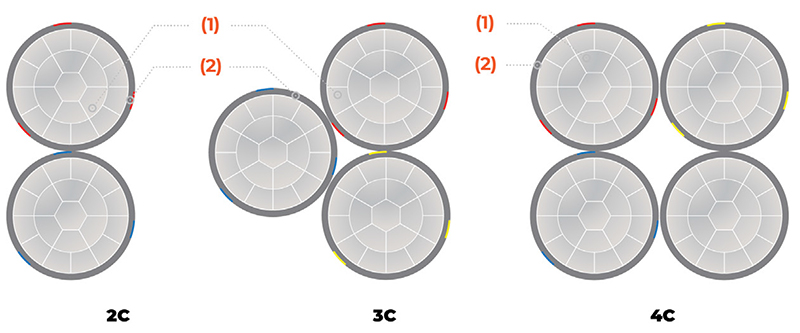

4Structure
- (1) Conductor: By stranded compacted circular aluminum.
(2) Insulation: XLPE.

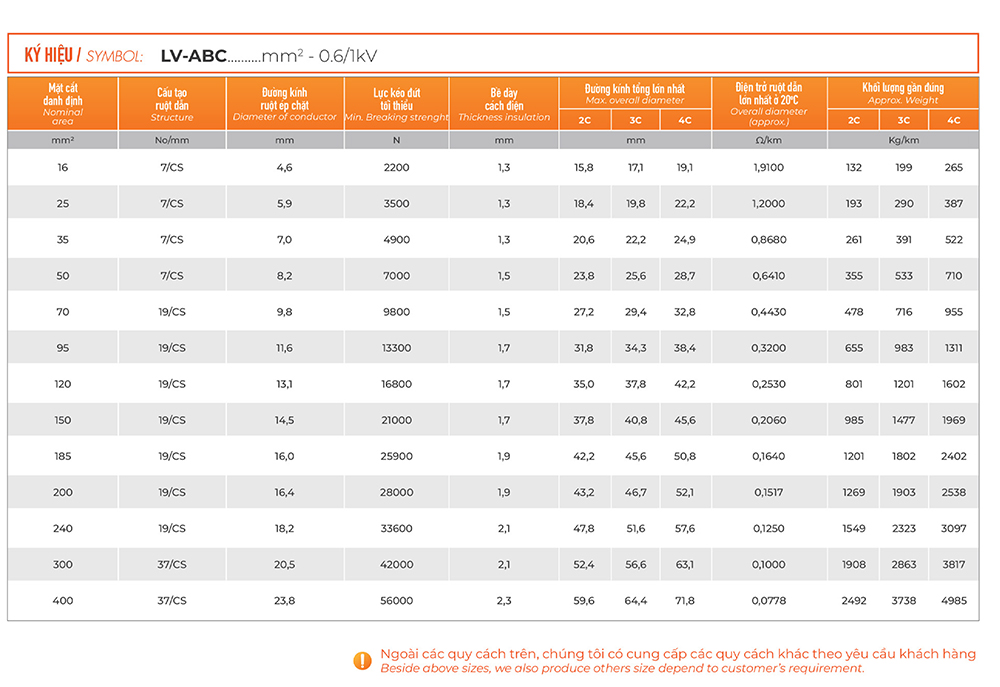

5Technical characteristics
- Rated voltage U0/U: 0,6/1 kV.
- Test voltage: 2kV (4hours).
- Maximum conductor temperature for normal operation is 90°C.
Maximum conductor temperature for short-circuit (5s maximum duration) is 250°C.
