Low voltage underground cables aluminum conductor, XLPE insulation, filler and inner sheath, metallic armour, PVC sheath – 0,6/1KV
Symbol:

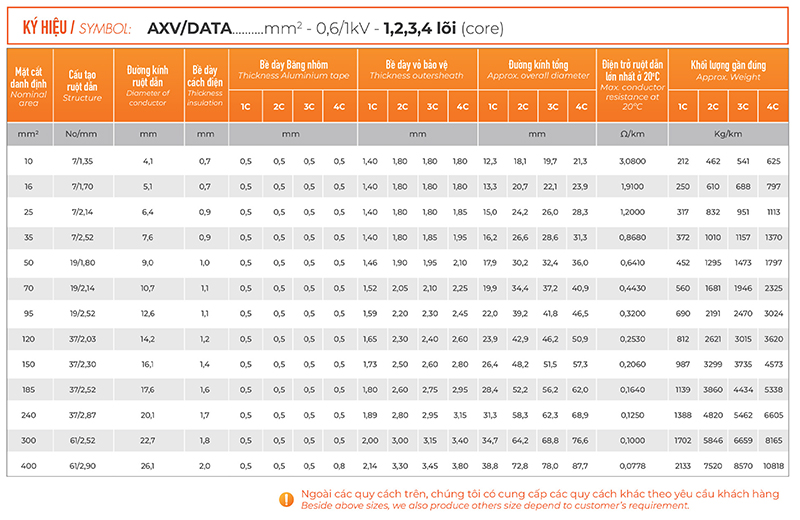

AXV/DATA…mm2 – 0,6/1KV 1, 2, 3, 4 lõi

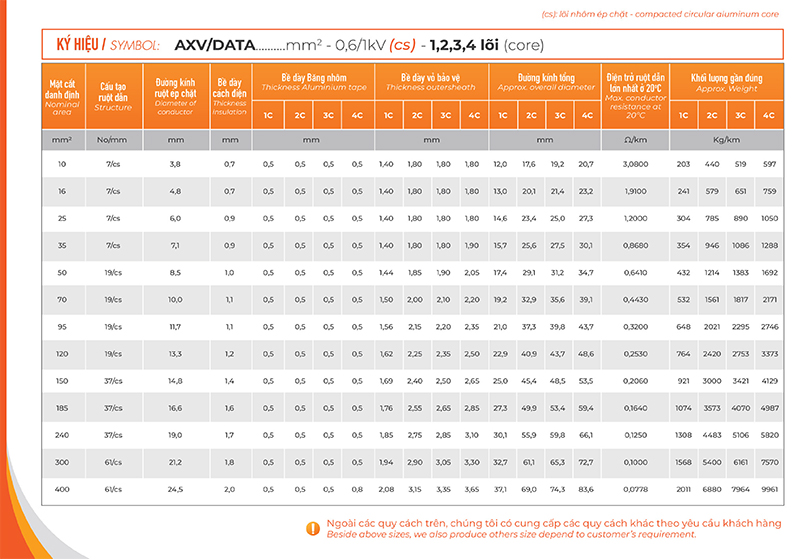

AXV/DATA…mm2 – 0,6/1KV (cs) 1, 2, 3, 4 lõi
AXV/DATA 3x…+1x…mm2 – 0,6/1KV

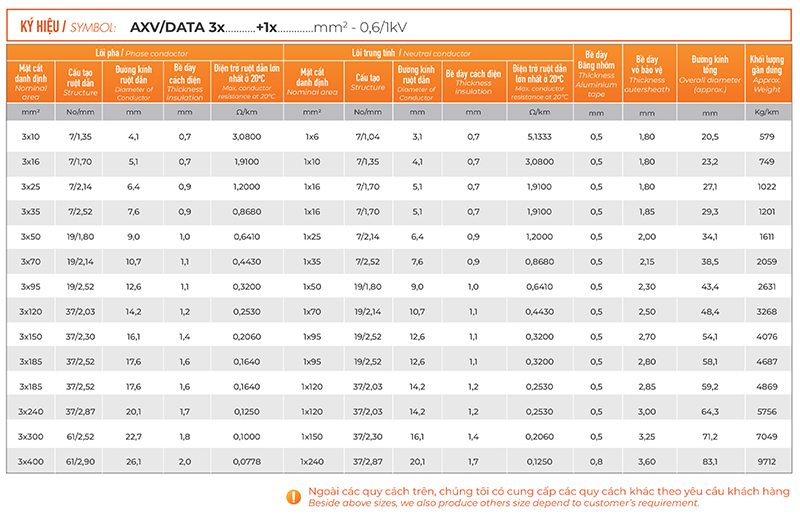

AXV/DATA 3x…+1x…mm2 – 0,6/1KV (cs)
AXV/DSTA…mm2 – 0,6/1KV 2, 3, 4, 5 lõi
AXV/DSTA…mm2 – 0,6/1KV (cs) 2, 3, 4, 5 lõi
AXV/DSTA 3x…+1x…mm2 – 0,6/1KV
AXV/DSTA 3x…+1x…mm2 – 0,6/1KV (cs)
AXV/DSTA…mm2 – 0,6/1KV (cs/WB/PET) 2, 3, 4, 5 lõi
AXV/DSTA 3x…+1x…mm2 – 0,6/1KV (cs/WB/PET)

1General

  • Low voltage underground cable used for underground power transmission and distribution system, rated voltage 0.6/1 kV, fixed wiring.

2Applied standard

  • TCVN 5935-1 / IEC 60502-1; TCVN 6612 / IEC 60228 or equivalent standard.

3Identification of cores

  • By color of insulation or by color stripe:
  • Single core cable: natural color of XLPE.
  • Multi-core cable: redyellowbluegreenblack or non stripe.
  • Outer sheath: black.
    Or by customer’s requirement.

4Structure

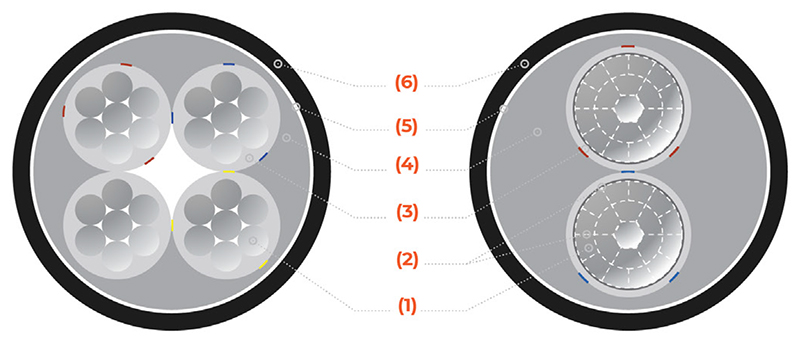

  • (1)   Conductor: By aluminum wires, concentrically stranded or compacted circular.
    (2)   Water-blocking: Without/with water-blocking material and wrapping PET tape.
    (3)   Insulation: XLPE.
    (4)   Filler and Inner sheath: PVC.
    (5)   Metallic armour: double steel tapes or double aluminum tapes.
    (6)   Outer sheath: PVC.



5Technical characteristics

  • Rated voltage U0/U: 0,6/1 kV.
  • Test voltage: 3,5 kV (5 minutes).
  • Maximum conductor temperature for normal operation is 90°C.
    Maximum conductor temperature for short-circuit (5s maximum duration) is 250°C.
