Flexible cables, copper conductor, pvc insulation, PVC sheath – 0,6/1KV
Symbol: VVCm … mm² – 0,6/1KV

Category:
Hotline
0903.902.849
Quote
Download Catalogue

1General

  • Used in power transmission and distribution systems, rated voltage 0.6/1KV, fixed wiring.

2Applied standard

  • TCVN 5935-1 / IEC 60502-1; TCVN 6612 / IEC 60228 or equivalent standard.

3Identification of cores

  • By color of insulation: red, yellow, blue, black,
  • Outer sheath: black or grey.
    Or by customer’s requirement.

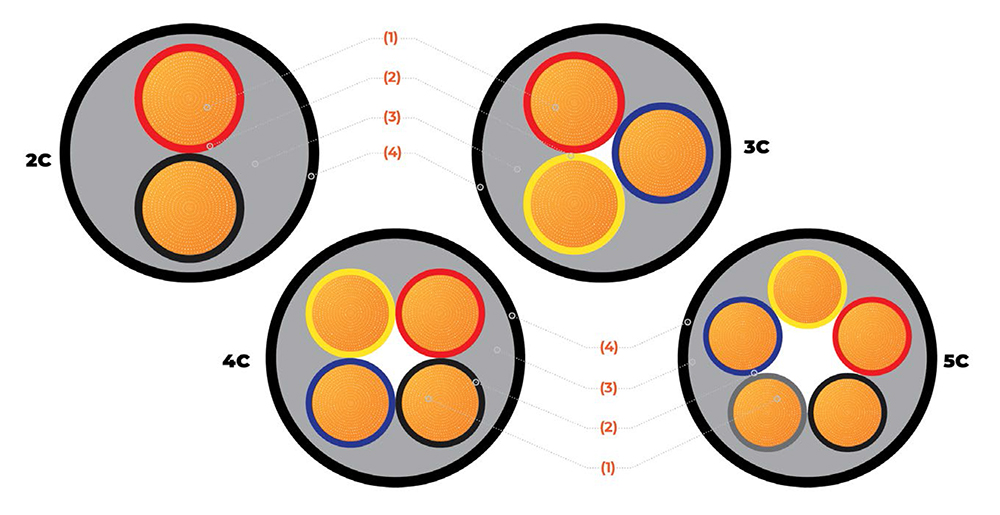

4Structure

  • (1) Conductor: by flexible copper wires (class 5), bunched.
    (2) Insulation: PVC.
    (3) Filler and Inner sheath: PVC.
    (4) Outer sheath: PVC.

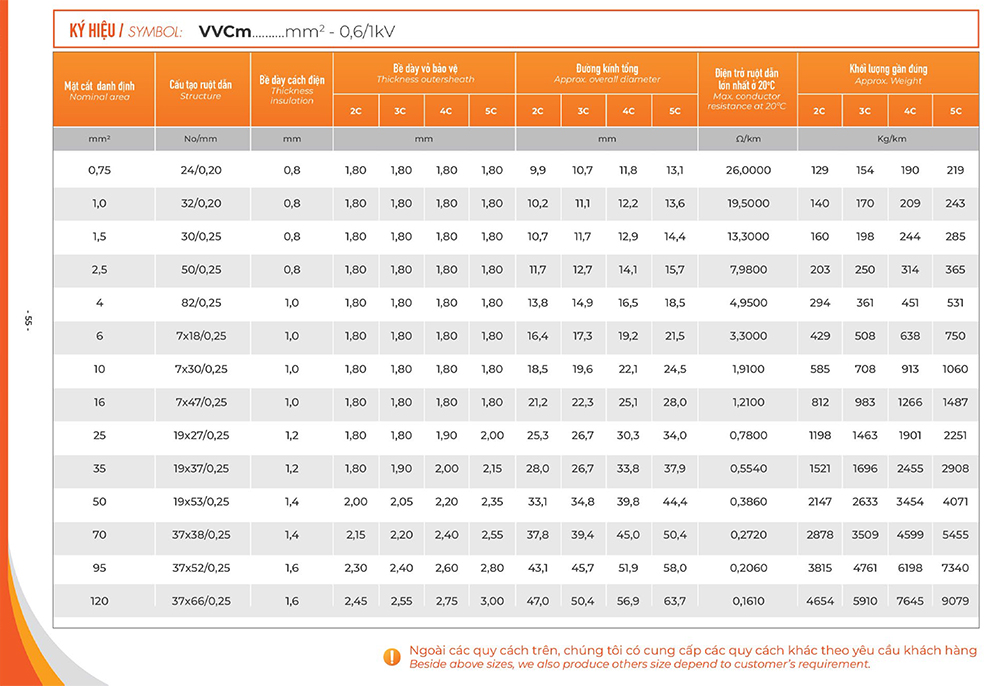

5Technical characteristics

  • Rated voltage U0/U: 6/1 KV.
  • Test voltage: 3,5 kV (5 minutes).
  • Maximum conductor temperature for normal operation is 70°C.
  • Maximum conductor temperature for short-circuit (5s maximum duration) is:
  • 140°C with nominal area larger than 300mm2.
    160°C with nominal area up to and include 300mm2.
