Muller cable, copper conductor, PVC insulation, aluminum tape armour, PVC sheath – 300/500V

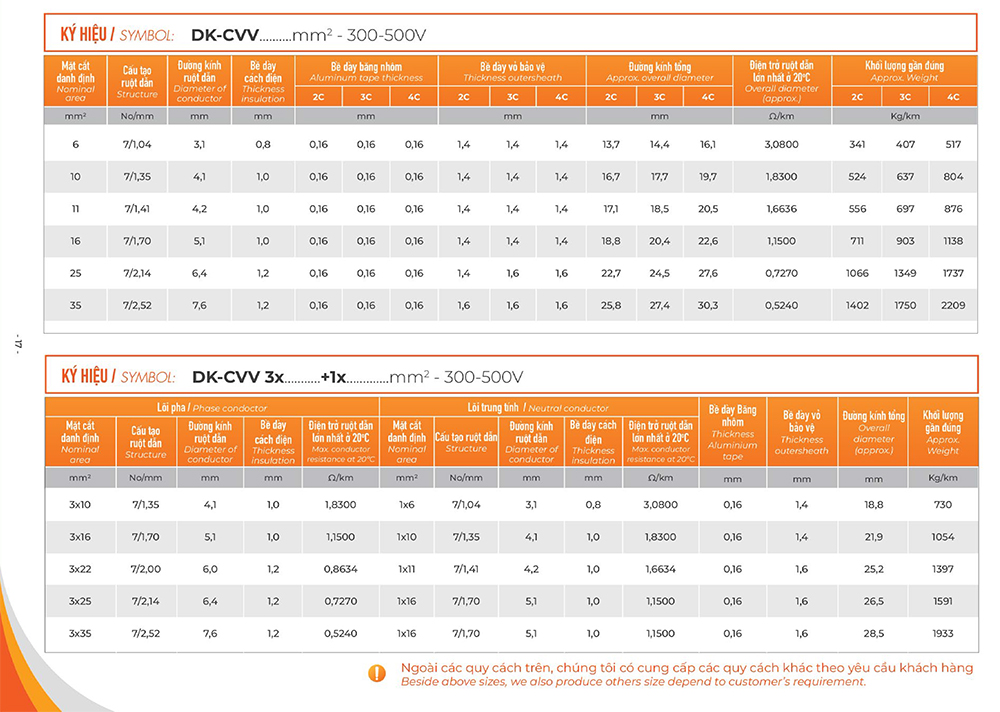

Symbol: DK-CVV…mm2 – 300/500V, DK-CVV 3x…+1x…mm2 – 300/500V

Category:
Hotline
0903.902.849
Quote
Download Catalogue

1General

Used as a power transmission cable to electric meters, rated voltage 300/500V, fixed wiring.

2Applied standard

TCVN 6610-4 / IEC 60227-4; TCVN 6612 / IEC 60228 hoặc tiêu chuẩn tương đương.

3Identification of cores

  • By color of insulation: red, yellow, blue, black.
  • Outer sheath: black or grey.
    Or by customer’s requirement.

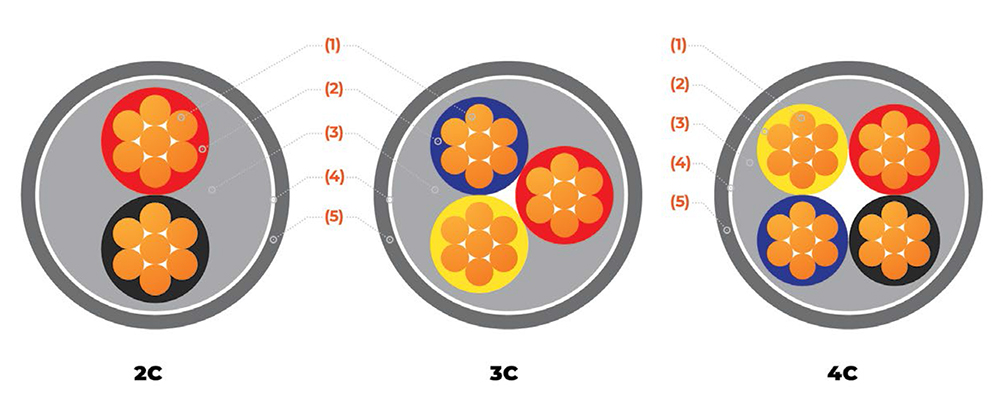

4Structure

  • Conductor: copper wire (class 2), concentrically stranded.
  • Insulation: PVC.
  • Filler and Inner sheath:
  • Metallic armour: aluminum tape.
    Outer sheath: PVC

5Technical

  • Rated voltage U0/U: 300/500 V.
  • Test voltage: 2,0 kV (5 minutes).
  • Maximum conductor temperature for normal operation is 70°C.
    Maximum conductor temperature for short-circuit (5s maximum duration) is 160°C.
