Power cables, aluminum conductor, PVC insulation, PVC sheath – 0,6/1KV

Contact

Category:
Hotline
0903.902.849
Quote
Download Catalogue

1Tổng quan

  • Used in power transmission and distribution systems, rated voltage 0.6/1KV, fixed wiring.

2Tiêu chuẩn áp dụng

  • TCVN 5935-1 / IEC 60502-1; TCVN 6612 / IEC 60228 or equivalent standard.

3Nhận biết lõi

  • By color of insulation: red, yellow, blue, black.
  • Outer sheath: black.
    Or by customer’s requirement.

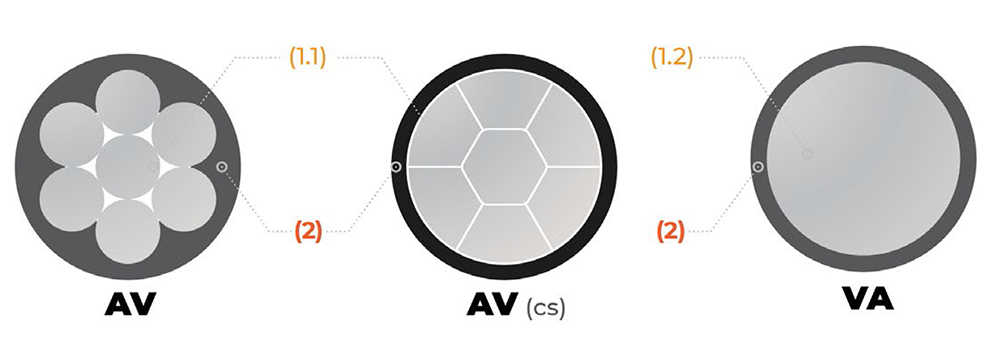

4Cấu tạo

  • (1)   Conductor: aluminum wire concentrically stranded.
    (2)   Insulation: PVC.
    (3)   Filler and Inner sheath: PVC.
    (4)   Outer sheath: PVC.

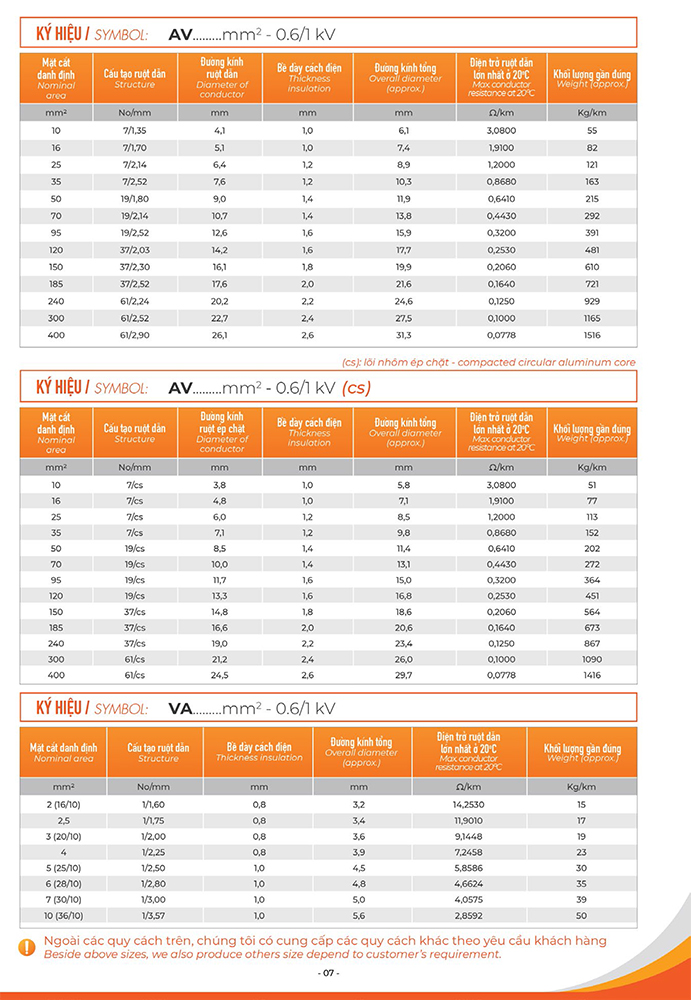

5Đặc tính kỹ thuật

  • Rated voltage U0/U: 6/1 KV.
  • Test voltage: 3,5 kV (5 minutes).
  • Maximum conductor temperature for normal operation is 70°C.
  • Maximum conductor temperature for short-circuit (5s maximum duration) is:
    • 140°C with nominal area larger than 300mm2.
      160°C with nominal area up to and include 300mm2.
