Power cables, aluminum conductor steel reinforced, PVC insulation – 0,6/1KV

Contact

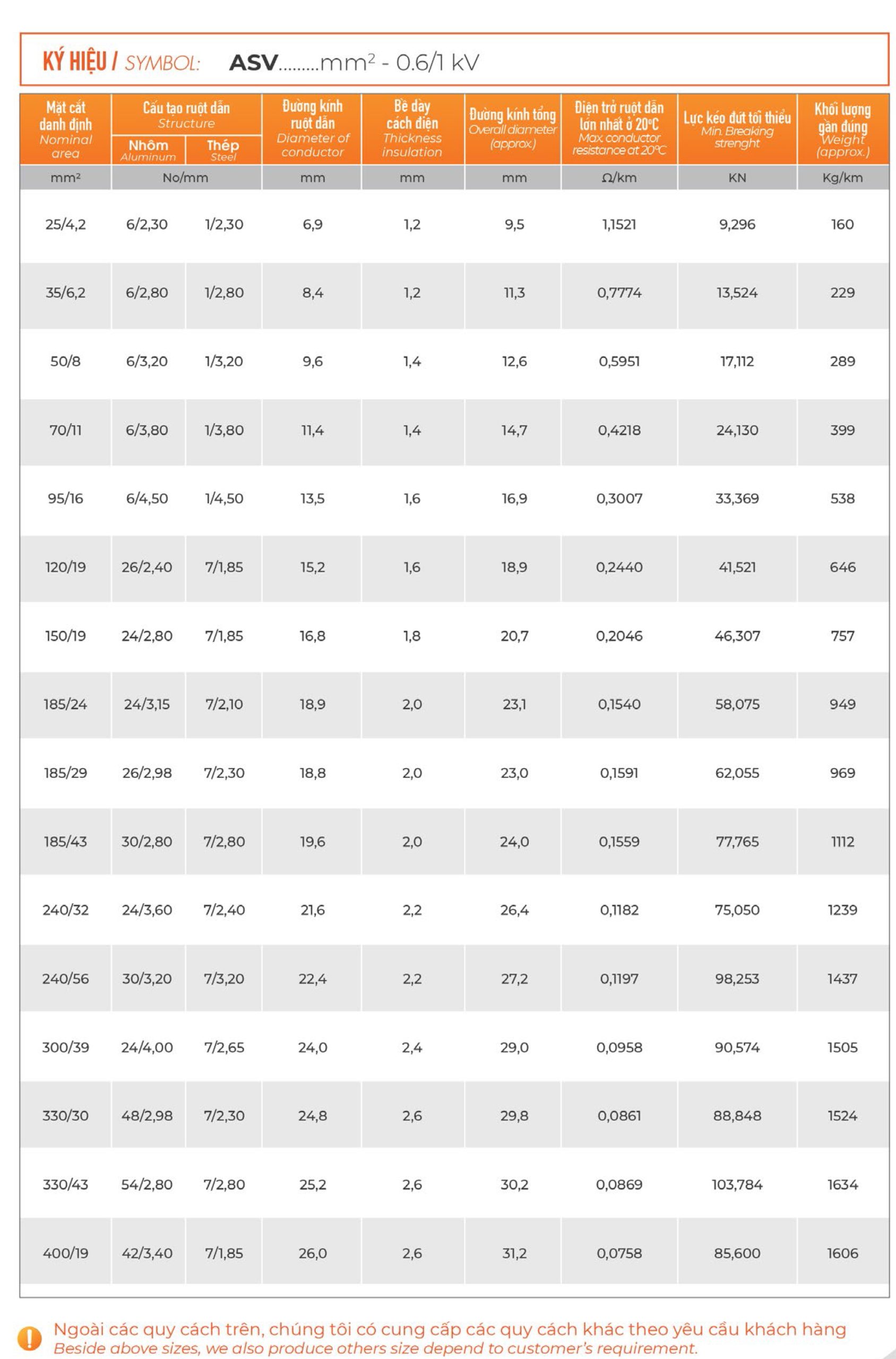

Symbol: ASV…mm2 – 0,6/1KV

1General

  • Used in power transmission and distribution systems, rated voltage 0.6/1KV, fixed wiring.

2Applied standard

  • TCVN 5064 – 1994; TCVN 5064 : 1994/SĐ 1 : 1995; TCVN 5935-1 / IEC 60502-1 or equivalent standard.

3Identification of cores

  • By color of insulation: black.
    Or by customer’s requirement.

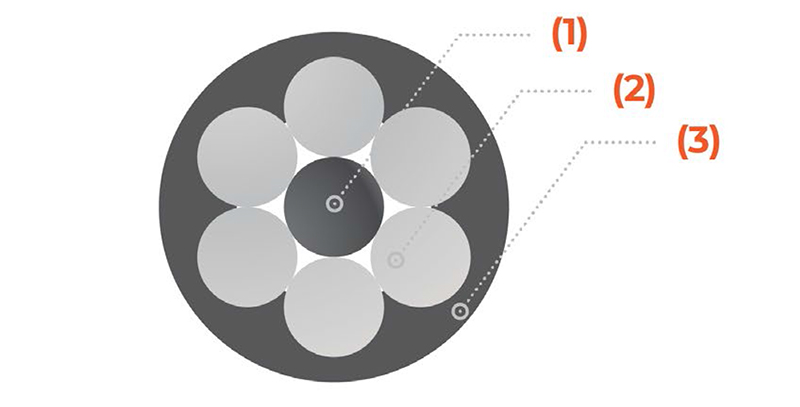

4Structure

  • (1) Steel wire.
    (2) Aluminum wries.
    (3) Insulation: PVC.

5Technical characteristics

  • Rated voltage U0/U: 6/1 KV.
  • Test voltage: 3,5 kV (5 minutes).
  • Maximum conductor temperature for normal operation is 70°C.
  • Maximum conductor temperature for short-circuit (5s maximum duration) is:
    • 140°C with nominal area larger than 300mm2.
      160°C with nominal area up to and include 300mm2.
